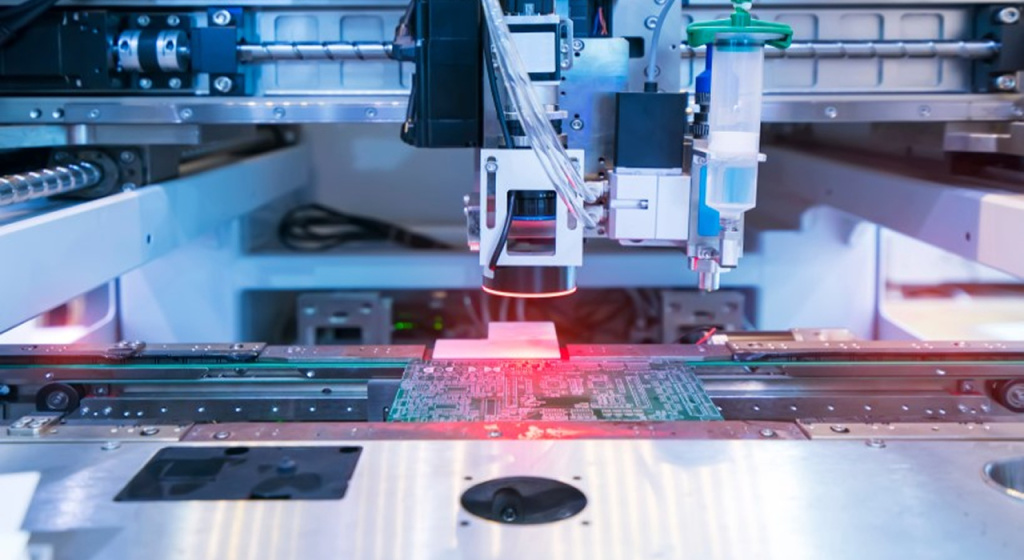

How Machine Vision Cuts Defects and Improves Quality Control

Short answer: Machine vision cuts defects by inspecting every unit with the same unwavering criteria, at a speed and consistency no human inspector can sustain over a full shift. A camera and processing software check each part against a defined standard — dimensions, surface condition, presence of components, code accuracy — and flag any deviation immediately, before the part moves further down the line. The result is fewer defects reaching the next process step, less rework, and quality control that doesn't degrade as fatigue, distraction, or shift changes set in.

What Is Machine Vision Quality Control?

Machine vision quality control is the use of cameras and image-processing software to inspect parts automatically, comparing what the camera sees against a defined standard and passing or rejecting each unit based on the result. Unlike a human inspector working from trained judgment, a machine vision system applies the exact same measurement or comparison to every single part, whether it's the first unit of the shift or the ten-thousandth.

This is the practical, industrial application of the broader concept of machine vision: a camera captures an image, software analyzes it against preset criteria, and the result — pass, fail, or a specific defect code — is sent to a PLC or line controller in real time.

How Does Machine Vision Reduce Defects?

Machine vision reduces defects mainly by catching problems that are too small, too fast, or too subtle for a human eye to reliably see — a hairline crack, a slightly misaligned label, a missing pin on a connector — and by never losing focus partway through a shift. Where a human inspector's attention naturally drifts over repetitive hours, a camera applies the same threshold to part one and part ten thousand.

The mechanism itself is straightforward: an area scan camera or smart camera captures an image at a trigger point, software compares specific features — edges, dimensions, color, presence of a component — against a tolerance range, and any part outside that range is flagged before it reaches the next station. Because the check happens inline rather than at a final audit, a systematic problem, such as a misfeeding component or a drifting machine setting, gets caught and corrected within minutes rather than after an entire batch has already been produced.

Machine Vision vs. Manual Inspection: What's the Difference?

The core difference is consistency, not just speed. A trained human inspector can catch obvious defects reliably, but judgment varies part to part, inspector to inspector, and hour to hour as fatigue sets in. Machine vision applies the identical check every time, at line speed, and logs the result. The table below compares the two approaches directly.

Machine Vision vs. Manual Inspection

Machine vision doesn't replace human judgment everywhere — some inspection calls genuinely need human context and experience. But for repetitive, well-defined checks at production speed, it consistently outperforms manual inspection on both accuracy and throughput, which is why the quality control benefits of machine vision come down to consistency more than raw detection power.

How Accurate Is Machine Vision Inspection?

Machine vision inspection accuracy depends less on the camera alone and more on how the whole imaging setup is configured: resolution relative to the defect size, lighting that makes the defect stand out rather than hide in shadow or glare, and a lens matched to the working distance and field of view. A telecentric lens, for example, keeps magnification constant across small changes in part position, which matters for precise dimensional checks.

Get any one of these wrong and even the best algorithm will miss defects or flag good parts as bad. This is also why machine vision accuracy tends to improve significantly when the system is engineered around the specific defect, rather than adapted from a generic setup.

What Types of Defects Can Machine Vision Detect?

Machine vision defect detection covers a wide range of failure types, typically grouped into a few categories:

• Surface defects — scratches, dents, cracks, discoloration, contamination
• Dimensional errors — parts outside tolerance for size, shape, or position
• Assembly errors — missing, misaligned, or incorrect components
• Code and label defects — unreadable, missing, or incorrect barcodes and text, often checked alongside dedicated barcode readers
• Shape and volume defects — checked with 3D cameras where a 2D image alone can't confirm depth or profile

Which categories matter most depends heavily on the product and process — a food packaging line cares about label accuracy and fill level, while an automotive assembly station cares about component presence and weld quality. Matching the defect type to the right camera, lens, and lighting combination is usually the deciding factor in whether a machine vision project actually delivers the expected reduction in defects.

Why Does Real-Time Defect Detection Matter?

Real-time defect detection matters because it catches problems while they're still cheap to fix. A part flagged and pulled at the inspection station costs far less to address than the same defect discovered during final assembly, at a customer audit, or after a product has shipped — by which point the cost includes rework, scrap, and potentially a wider recall investigation. Feeding inspection results back to a vision controller or line PLC in real time also makes it possible to catch a drifting process — a loosening fixture, a wearing tool — before it produces a run of defective parts rather than just one.

Where Does Machine Vision Improve Quality Control the Most?

Machine vision delivers the strongest quality control benefits in high-volume, repetitive processes where defects are well-defined and consistency genuinely matters — which is why it's concentrated in a handful of industries. In automotive manufacturing, it verifies component presence, weld quality, and assembly accuracy at line speed. In electronics production, it catches defects far too small for manual inspection on densely packed boards. In pharmaceutical manufacturing, it verifies fill levels, seal integrity, and label accuracy, where a missed defect carries real regulatory and safety consequences.

Across all three, the pattern is the same: machine vision doesn't just catch more defects — it catches them earlier and more consistently than a manual process ever could.

Getting Started with Machine Vision Quality Control

Improving quality control with machine vision starts with identifying which defects actually cost the most in scrap, rework, or customer complaints, then working backward to the camera, lens, and lighting combination that can reliably catch them. On lines that combine inspection with part handling, pairing a vision system with a JAKA collaborative robot lets the same station both check and sort parts without a separate handling step.

As an official Hikrobot distributor, Elvotec helps manufacturers design inspection systems around their specific defect types, building on the fundamentals covered in our machine vision guide.
