LS2 Series
Get a Quote

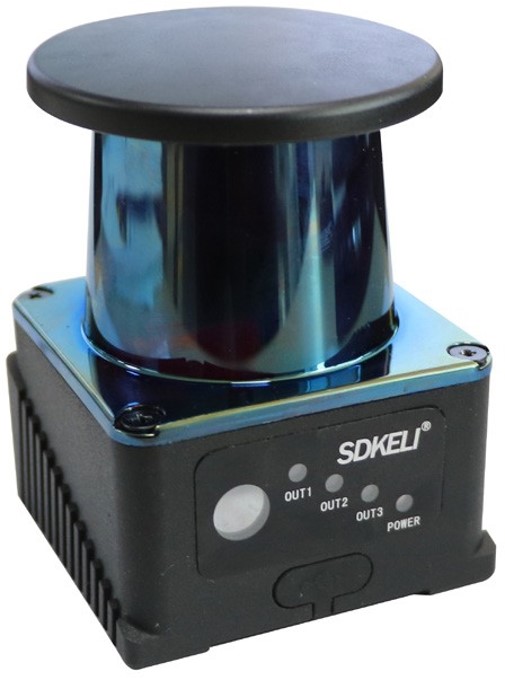

LS2 Laser radar (lidar)
LS2 Lidar provides the two-dimensional detection of zones and the profile scanning with a range of 270° and a radius of 10m. It is compact in size, has highly flexible and reliable functionality, being an ideal choice for the mobile robot navigation.
Key features
- Сompact pulsed laser radar with dimensions of 62×64×84 mm, simplifying user integration.
- The energy of the pulsed laser light is 1000 times higher than that of a continuous constant light source, ensuring measurement stability and reliability. Combined with nanosecond narrow pulse technology, this Class 1 laser product is safe for the human eyes.
- Up to 25,000 measurements/s, the scanning time for single turn is 40 ms.
- Industrial design, IP65 protection, special design to eliminate temperature drift errors, EMC tests, resistance to external lighting, shocks and vibration.
- Removable window design simplifies and reduces maintenance costs, increasing product lifespan
- Up to 16 groups of user-defined detection zones. Detection zones can have any complex irregular shapes according to user requirements.
