BLPS Series
Get a Quote

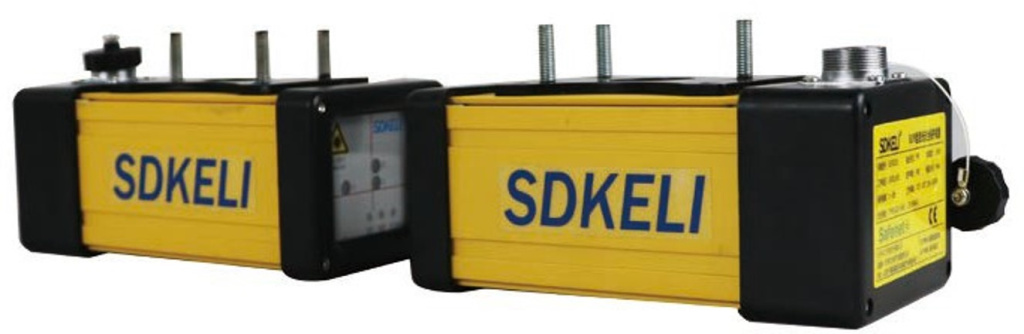

BLPS laser safety protective device Type 4
Designed for ensuring the safety of operators of hydraulic bending machines.
The dynamic testing technology has passed the TUV functional safety type 4 assessment and received a national patent for invention.
Provides protection for the fingers and hands of the operator near the upper tip of the press mold stamp. To date, it is the most effective comprehensive solution for ensuring human safety and high performance of the bending machine.
Key Features
- Class 1 laser, safe for the human eyes.
- Protective L-type beam needs to be installed next to the upper tip of the stamp and the detection beam should move parallel to the tip.
- Comprehensive functional design, meeting safety requirements for processing different shapes of workpieces.
- Independent control system for the bending machine, no programming required.
- Good resistance to electromagnetic and light interference.
BLPS series sensors can be used separately with the control system of the press brake. The three detection beams have 6 OSSD output channels and each beam has two independent PNP safety outputs.
The receiver emits a high level in light transmission mode and a low level in light shading mode. After removing the light shading object, the OSSD automatically switches to the ON state.
Package includes:
- Emitter, receiver, controller, data transmission and power cables.
