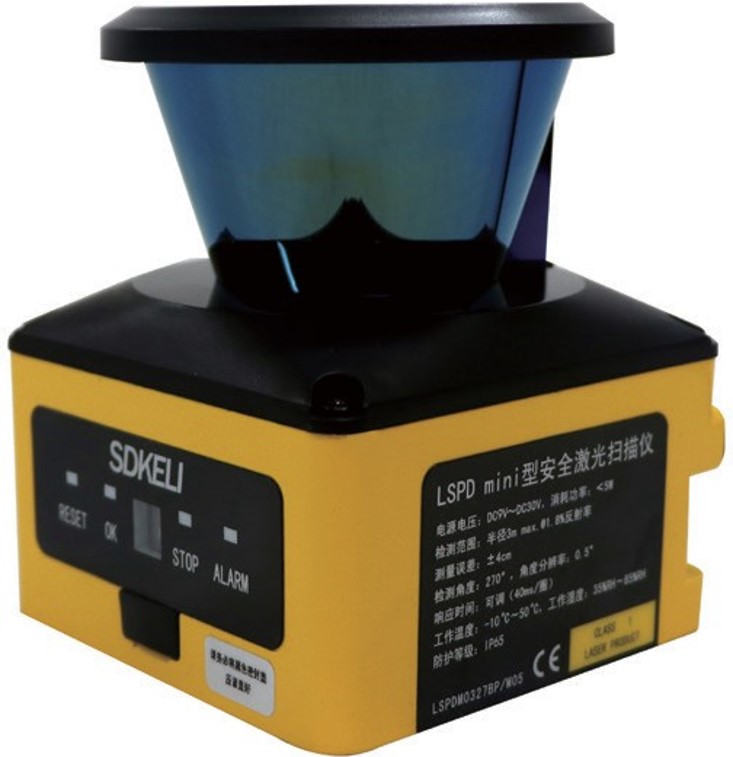

LSPD MINI safety laser scanner
Provides a two-dimensional detection zone and profile scanning with a range of 270° and a radius of 3m. Compact with flexible functionality and high reliability, it's an ideal choice for obstacle detection and navigation of mobile robots.
Key features
- The world's most compact laser radar, certified for the functional safety with the dimensions of 80×80×95 mm.
- Protection and warning zones. The maximal radius of a protection zone is 3m at a 1.8% reflectivity.
- Can set zones of arbitrary complex shapes according to user needs.
- Complies with IEC 61496 Type3 and ISO 13849 PLd safety requirements.
- Class 1 laser, safe for the human eyes.
- Window contamination detection function: if the actual detection distance is less than the stated protective distance, the output is deactivated.
