CH CoaXPress.png

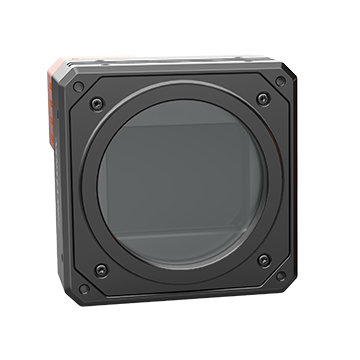

CH series area scan cameras with GigE / 10GigE / USB 3.0 / Camera Link / CoaXPress interface

Key Features

A range of 5 – 151Mp to fulfill high-resolution and high frame rate needs.
Hight-quality image sensor. Wide dynamic range, superior signal-to-noise ratio and exceptional image quality.
Powerful ISP algorithms, such as bright/dark field and shadow correction ensure stable image quality.
Advanced product series specifically designed for high-precision applications and development within the panel, electronic semiconductor, new energy and various other industries.
An excellent solution for high-speed data transmission.
CE, FCC, RoHS, KC certification.

Catalog (download, english)

Select All

В корзину

MV-CH040-A0CM

Number of pixels

2048 x 2048

Frame rate

180 fps

Image sensor

1"

Color

Mono

Data interface

CameraLink

MV-CH050-10CC

Number of pixels

2432 x 2048

Frame rate

140 fps

Image sensor

IMX250 2/3"

Color

Color

Data interface

CameraLink

MV-CH050-10CM

Number of pixels

2432 x 2048

Frame rate

140 fps

Image sensor

IMX250 2/3"

Color

Mono

Data interface

CameraLink

MV-CH050-10UC

Number of pixels

2448 x 2048

Frame rate

74 fps

Image sensor

IMX250 2/3"

Color

Color

Data interface

USB3

MV-CH050-10UM

Number of pixels

2448 x 2048

Frame rate

74 fps

Image sensor

IMX250 2/3"

Color

Mono

Data interface

USB3

MV-CH050-10UP

Number of pixels

2448 x 2048

Frame rate

74 fps

Image sensor

IMX250 2/3"

Color

Polarization

Data interface

USB3

MV-CH050-11CC

Number of pixels

2448 x 2048

Frame rate

35 fps

Image sensor

IMX264 2/3"

Color

Color

Data interface

CameraLink

MV-CH050-11CM

Number of pixels

2448 x 2048

Frame rate

35 fps

Image sensor

IMX264 2/3"

Color

Mono

Data interface

CameraLink

MV-CH050-90XM

Number of pixels

2600 x 2160

Frame rate

209 fps

Image sensor

GMAX2505 1/2"

Color

Mono

Data interface

CoaXPress

MV-CH089-10GC

Number of pixels

4096 x 2160

Frame rate

13 fps

Image sensor

IMX267 1"

Color

Color

Data interface

GigE

MV-CH089-10GM

Number of pixels

4096 x 2160

Frame rate

13 fps

Image sensor

IMX267 1"

Color

Mono

Data interface

GigE

MV-CH089-10UC

Number of pixels

4096 x 2160

Frame rate

32 fps

Image sensor

IMX267 1"

Color

Color

Data interface

USB3

MV-CH089-10UM

Number of pixels

4096 x 2160

Frame rate

32 fps

Image sensor

IMX267 1"

Color

Mono

Data interface

USB3

MV-CH100-60GC

Number of pixels

4096 x 2460

Frame rate

11 fps

Image sensor

BSI 1"

Color

Color

Data interface

GigE

MV-CH100-60GM

Number of pixels

4096 x 2460

Frame rate

11 fps

Image sensor

BSI 1"

Color

Mono

Data interface

GigE

MV-CH100-60UC

Number of pixels

4096 x 2460

Frame rate

36 fps

Image sensor

BSI 1"

Color

Color

Data interface

USB3

MV-CH100-60UM

Number of pixels

4096 x 2460

Frame rate

36 fps

Image sensor

BSI 1"

Color

Mono

Data interface

USB3

MV-CH1010-10CC-M72-TF

Number of pixels

11648 x 8472

Frame rate

8 fps

Image sensor

IMX461

Color

Color

Data interface

CameraLink

MV-CH1010-10CM-M72-NF

Number of pixels

11648 x 8472

Frame rate

8 fps

Image sensor

IMX461

Color

Mono

Data interface

CameraLink

MV-CH1010-10CM-M72-TF

Number of pixels

11648 x 8472

Frame rate

8 fps

Image sensor

IMX461

Color

Mono

Data interface

CameraLink
