KS06Q area series

KS06Q area AOPD

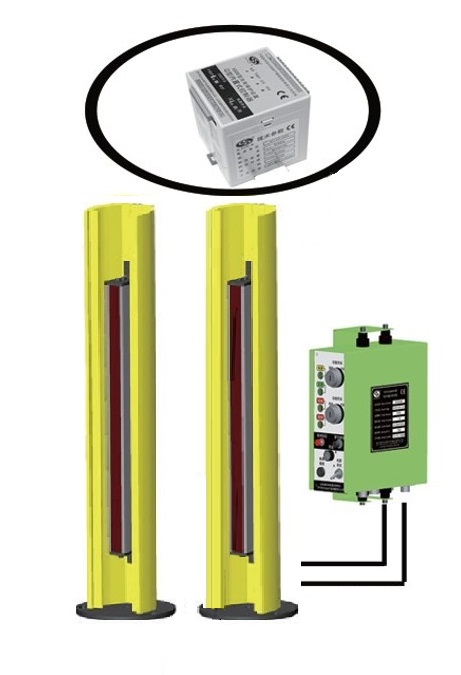

AOPD KS06Q series includes the KS06QA, KS06QB, and KS06QT models.

KS06QT series uses a Class I laser. The beam emitted by the emitter is received by the receiver after being reflected by the reflector. The light passing through the emitter, receiver and reflector forms a protective zone.

KS06QA/KS06QB can be mounted with the CPSII controller outside the user's electrical cabinet or with the CQ2 controller inside the electrical cabinet.

KS06QT can be mounted with the CPSV controller outside the user's electrical cabinet or with the CQ5 controller inside the electrical cabinet.

CPSV and CQ5 controllers are equipped with collimation switches to activate the collimating beam of the KS06T light curtain for on-site light debugging. It can provide to users two sets of relay signals. The controller has two operating modes - automatic and manual reset. When the AOPD is used for area protection, manual reset mode is recommended. CPSII/CPSV controller is equipped with a start button for the system self-test function. CPSII/CPSV controller's functional switch uses a double-lock design to avoid safety threats caused by improper operation or failure of the locking switch.

Key Features

Package includes:

• Controller, emitter, receiver, reflector, data transmission and power cables.
